Best SSDs for the Steam Deck in 2026

Why Upgrade Your Steam Deck SSD

The Steam Deck transformed handheld PC gaming, but its storage has always been its tightest constraint. The base models in particular fill up almost immediately once you install a few modern games, each of which can consume well over a hundred gigabytes. While a microSD card offers an easy way to add space, it cannot match the speed of the internal NVMe drive, and shuffling games between storage tiers grows tedious. The cleanest, most satisfying solution is to replace the internal SSD with a larger, faster 2230 module, giving you a single roomy fast volume for your entire library.

Upgrading the Deck's SSD is not quite as simple as a desktop swap, however, and the constraints are unusually strict. The Deck uses the compact M.2 2230 form factor, just 30mm long, which immediately rules out the vast majority of SSDs on the market. Beyond size, the Deck has a small power budget and limited cooling, so efficiency and thermals matter even more than in a laptop. A drive that runs hot or draws too much power can hurt battery life and comfort. This guide focuses on 2230 drives that are efficient, cool, and ideally single-sided, then ranks the best options for 2026.

What to Look For in a Steam Deck SSD

The 2230 Form Factor Is Mandatory

This is the non-negotiable starting point. The Steam Deck accepts only M.2 2230 drives, which are 22mm wide and 30mm long, far shorter than the 2280 modules used in desktops and most laptops. Buying a 2280 drive by mistake is the most common error, and it simply will not fit. Every drive in this roundup is a 2230 module. When shopping, always confirm the form factor in the product listing, since some product families sell multiple sizes under similar names.

Single-Sided Designs Fit Best

Within the 2230 category, single-sided drives, those with chips on only one side of the board, are strongly preferred for the Deck. They fit more comfortably in the tight space, run cooler because heat is not trapped between layers, and avoid any clearance concerns with the Deck's internal shielding. All of our picks are single-sided. Double-sided 2230 drives exist and may physically fit, but single-sided is the safer, cooler choice and the one the community consistently recommends.

Efficiency and Thermals

The Deck is a battery-powered handheld with limited cooling, so power efficiency and heat are paramount. An efficient drive preserves battery life and keeps the device comfortable to hold, while a power-hungry, hot-running drive does the opposite. This is why drives like the WD Black SN770M and Micron 2400, both known for efficiency, are such strong fits. Raw peak speed matters less here than it does on a desktop, because the Deck's workload is mostly reading game data and the device cannot fully exploit the highest-end controllers anyway.

Capacity and Value

Decide how much storage you actually need. A 1TB drive is a comfortable upgrade for most owners, while heavy gamers will appreciate 2TB to hold a large library without managing space. Because the Deck reads game data far more than it writes, the QLC NAND found in some affordable high-capacity drives is rarely a real drawback here; the slow sustained writes that hurt QLC drives in write-heavy desktop use simply do not come into play much. That makes value-oriented 2230 drives genuinely appealing for the Deck.

How We Tested and Ranked

We evaluated each 2230 drive with an emphasis on the qualities that matter in a handheld. We confirmed single-sided designs and physical compatibility, then measured power efficiency and thermal behavior, since both directly affect battery life and comfort. We tested sustained and random performance, with particular attention to game loading, the workload the Deck actually runs. We weighed capacity options and price per terabyte heavily, because value is central to the upgrade decision. A drive that posts a high benchmark but runs hot, draws excessive power, or comes only as a double-sided module does not rank as well as a cooler, more efficient, single-sided alternative that suits the Deck's realities.

Choosing the Right Steam Deck SSD for You

For the Best Experience

Most Deck owners will be happiest with the WD Black SN770M. It combines the efficiency and cool operation the Deck demands with a clean single-sided fit and excellent real-world game loading. It is the most well-rounded 2230 drive for the handheld. If you prefer a premium brand experience, the Corsair MP600 Mini delivers consistent performance and a reputable warranty, while the newer Crucial P310 offers the highest peak speeds of the group for those who want the latest generation.

For the Best Value

The Inland TN436 is the community value favorite and our value pick, offering excellent price per terabyte with dependable performance and a single-sided design. The Addlink S91 is an even cheaper alternative that still performs well in the Deck. Both prove you do not need to spend a lot to dramatically expand your handheld's storage with a fast, well-fitting drive.

For Maximum Capacity and Efficiency

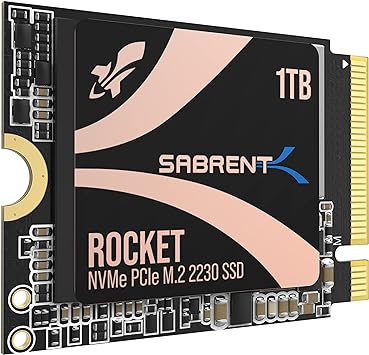

If your priority is a large library, the Sabrent Rocket 2230 offers a roomy 2TB option with good sustained behavior in a single-sided module. If you want to squeeze the most battery life and the coolest operation from your Deck, the Micron 2400 is exceptionally efficient and affordable. Choose based on whether capacity or runtime is your top concern; both are excellent fits for the handheld.

Installation and Setup Tips

Upgrading the Steam Deck's SSD requires more care than a desktop swap, but it is well within reach for a patient first-timer. Begin by fully charging or running down the battery as Valve recommends, then power off the device. Follow an official or reputable teardown guide precisely, removing the back cover screws, carefully detaching the cover, and disconnecting the battery before touching the drive. The 2230 module is held by a single screw and often wrapped in a thin protective shield; transfer that shield to your new drive, since it provides important insulation.

Once the new 2230 drive is installed and the Deck reassembled, you must reimage SteamOS. Download Valve's official recovery image, write it to a USB drive, boot the Deck from it, and follow the prompts to reinstall the operating system. The whole software process takes under an hour and is well documented. After setup, your full storage capacity will be available and you can begin reinstalling your library. Work slowly, keep track of screws, and avoid forcing any connector, and the upgrade will go smoothly.

Internal SSD Versus microSD: Which to Choose

Every Steam Deck owner eventually weighs the internal SSD upgrade against simply buying a large microSD card, and both approaches have merit. A microSD card is by far the easiest path to more storage, requiring no disassembly and no operating system reinstall. You slot it in, format it, and start installing games. For many titles, particularly older or less demanding ones, microSD performance is perfectly acceptable, and modern high-speed cards have narrowed the gap further. If you simply want more room with zero effort, a microSD card is a legitimate choice.

The internal SSD, however, is meaningfully faster and offers a more seamless experience. Games load quicker, large titles install and update faster, and you avoid the slight performance penalty that microSD storage can impose on the most demanding games. There is also the matter of reliability and heat; the internal drive lives in a more controlled environment than a card exposed to the Deck's external slot. The ideal setup for many enthusiasts is both: a larger internal SSD for the games they play most and care about loading quickly, plus a microSD card for overflow and titles where speed matters less. This combination maximizes total capacity while keeping your favorites on the fastest storage.

Common Mistakes When Upgrading a Steam Deck SSD

The most common and costly mistake is buying the wrong form factor. The Steam Deck accepts only M.2 2230 drives, and a standard 2280 desktop drive simply will not fit. Always verify the listing says 2230 before purchasing, and ideally choose a single-sided module for the best fit and thermals. A second frequent error is rushing the physical installation. The Deck requires careful disassembly, and forcing the back cover, mishandling the battery connector, or losing track of screws can cause real damage. Follow a reputable teardown guide step by step and work patiently.

A third mistake is forgetting to transfer the thin protective shield that wraps the original drive onto the new one. This shield provides important electrical insulation, and omitting it risks problems. Finally, many first-timers panic when the new drive does not boot, not realizing that a fresh drive has no operating system. You must reimage SteamOS from Valve's official recovery image after installation. Knowing this in advance turns a moment of alarm into a routine final step, and the whole software process takes well under an hour.

Caring for Your Upgraded Steam Deck SSD

After a successful upgrade, your Deck will need little ongoing maintenance, but a few habits help. As with any SSD, leave some free space so the drive can manage caching and background tasks efficiently; avoid filling it completely and leaving it that way. SteamOS handles the underlying drive maintenance automatically, so there is no manual upkeep required for performance over time. If you ever notice issues, ensuring SteamOS is fully updated is the first troubleshooting step, since system updates occasionally improve storage handling.

It is also wise to keep your game library backed up to the cloud through Steam where possible, and to remember that reimaging the drive will erase everything, so back up any local saves or non-Steam content before any future maintenance. For owners who installed both a larger internal drive and a microSD card, periodically reviewing which games live where helps you keep your most-played and most-demanding titles on the faster internal storage. With these light touches, your upgraded Deck will deliver a spacious, fast library for the life of the device.

Final Verdict

Expanding your Steam Deck's storage with a larger 2230 SSD is one of the most worthwhile upgrades a handheld owner can make, eliminating the constant juggling of limited space. Our overall pick, the WD Black SN770M, delivers the efficiency, cool operation, and clean single-sided fit the Deck demands, making it the easiest recommendation. Value seekers should look to the Inland TN436 and Addlink S91, while the Sabrent Rocket 2230 and Crucial P310 serve those wanting maximum capacity or the latest performance. Just remember the essentials: buy a 2230 module, prefer single-sided, prioritize efficiency, and follow the reimaging steps carefully. Do that, and your Deck will hold your entire library with room to spare.
