Expert Review & Guide
Building a desktop for AI work is less about a sticker that says AI-ready and more about whether the motherboard can feed a hungry GPU, keep a high-core CPU stable under long inference or fine-tuning sessions, and move large model files without becoming the bottleneck. Local LLMs, Stable Diffusion, voice pipelines, and dataset prep all punish weak VRMs, cramped M.2 layouts, and sluggish networking. Socket choice still matters: AMD AM5 covers Ryzen 7000 through 9000 for long upgrade paths, while Intel LGA 1851 Core Ultra Series 2 boards lean into the Advanced AI PC story with onboard NPU headroom plus discrete GPU acceleration.
This guide ranks ten boards from our best-motherboards-for-ai pack only. We prioritized power delivery for sustained multi-core loads, PCIe 5.0 graphics and storage lanes where available, M.2 count for model caches and scratch disks, wired Ethernet from 2.5GbE up to 10GbE for dataset sync, and modern wireless when you must train away from a wired drop. We also weighed DIY quality-of-life features—BIOS FlashBack, heatsink coverage, and cable-management designs—because AI rigs are often rebuilt when a new GPU or NVMe stack lands.
You will not find dollar prices here; motherboard street deals move too quickly to freeze in an article. Ratings mirror Amazon listing averages at writing time. Start with the three top picks for a clear overall AM5 AI board, a high-rated Intel Core Ultra ATX option, and a 10GbE-focused AM5 workstation pick. Use the comparison table to shortlist by socket and I/O, then read each review for who should buy, who should skip, and how the board behaves once you park a large GPU and a few terabytes of models next to it.
As an Amazon Associate we earn from qualifying purchases. We may earn a commission at no additional cost to you.
Scan this table to separate AM5 B850/B840/B650 boards from Intel LGA 1851 and LGA 1700 options. Specs highlight socket and chipset class, VRM or storage strength, and the networking feature that matters when you move multi-gigabyte models daily. No prices—open the live Amazon listing for the current offer.
ASUS ROG Strix B850-A Gaming WiFi
If you want one AM5 board that feels purpose-built for modern AI desktops without jumping straight to a boutique workstation SKU, the ROG Strix B850-A Gaming WiFi is the safest overall pick in this pack. ASUS positions it explicitly for Advanced AI PCs, and the hardware underneath that claim is more than marketing: a 14+2+2 power solution rated for 80A per stage, an 8+8-pin ProCool connector, alloy chokes, and durable capacitors. That stack matters when a Ryzen 9000-series CPU sits next to a high-wattage GPU and both stay warm for hours of inference or LoRA fine-tuning.
Storage layout is where this board pulls ahead of several rivals that stop at three M.2 slots. Four onboard M.2 interfaces let you separate Windows, a fast PCIe 5.0 model vault, a secondary NVMe for datasets, and a cooler Gen4 drive for scratch renders or Docker layers. AI work balloons storage faster than gaming does; being able to expand without daisy-chaining USB enclosures keeps latency predictable and cables out of the GPU’s airflow path.
Networking is modern rather than extreme. Realtek-class 2.5G LAN plus WiFi 7 with ASUS Q-Antenna is enough for most home labs, cloud sync jobs, and pulling weights from Hugging Face without living on WiFi 5 leftovers. AI Networking II is useful if the same PC also streams, games, or joins video calls while a background download fills a drive. It will not replace a 10GbE switch in a multi-node training corner, but for a single powerful desk machine it is the right balance.
Thermals get the ROG treatment: massive VRM heatsinks bridged with high-conductivity pads and an integrated I/O cover that doubles as structural cooling mass. Under sustained all-core CPU work plus GPU heat soak, those pads and heatsinks are the difference between a quiet fan curve and a VRM that forces clocks to dance. Pair it with a capable air cooler or 360mm AIO and keep the case’s front intake honest—AI boxes often choke themselves with closed front panels and three NVMe drives running hot.
Software extras such as ASUS AI Advisor sit in the gray zone between helpful and gimmicky depending on how deep you already are into BIOS tuning. First-time AM5 builders appreciate guided suggestions; veterans will ignore half of it and go straight to EXPO, PCIe bifurcation checks, and Resizable BAR. Either way, BIOS FlashBack-class recovery habits still apply: update firmware before installing a brand-new Ryzen SKU if your board’s box BIOS is older than the CPU.
Who should skip it? Anyone locked into Intel Core Ultra for NPU-centric workflows, or builders who need onboard 10GbE for multi-terabyte nightly syncs. Everyone else building a Ryzen AI gaming-and-creation hybrid will find the Strix B850-A hard to outgrow inside a normal upgrade cycle. It is the board we would order first if the brief said “one AM5 ATX for local LLMs, image work, and a future GPU upgrade.”
Choose the Strix B850-A if you are standardizing on AMD Ryzen 7000/8000/9000, want four NVMe slots without add-in cards, and value WiFi 7 plus 2.5G Ethernet for a mixed creative desk. It fits creators who game after work and researchers who prefer one loud, powerful tower over a silent office mini-PC.
Install the hottest PCIe 5.0 SSD under the best-ventilated M.2 heatsink, leave a Gen4 drive for scratch, and enable EXPO only after a memory stress pass. Confirm GPU slot bifurcation and lane sharing in the manual before stacking four drives and a capture card—AI PCs accumulate peripherals quickly.
The GIGABYTE B850 AORUS Elite WIFI7 is a close peer on chipset and wireless, but the Strix’s fourth M.2 slot and ROG AI tooling give it the overall edge for model-heavy builds. Pick AORUS if you want Sensor Panel Link and a slightly different warranty/DIY ecosystem; pick Strix if storage count and AI Advisor matter more.
We may earn a commission at no additional cost to you.
ASUS TUF Gaming B860-PLUS WiFi
Intel’s Core Ultra Series 2 desktop story leans hard on Advanced AI PC messaging, and the TUF Gaming B860-PLUS WiFi is the strongest Intel ATX expression of that idea in this pack. A 4.7 rating signals broad buyer satisfaction, while the feature sheet reads like a checklist for GPU-accelerated local AI: LGA 1851 readiness, enhanced 12+1+2+1 80A DrMOS power stages, 8+8 pin ProCool connectors, DDR5, PCIe 5.0, three M.2 slots with heatsinks, Wi-Fi 7, 2.5Gb LAN, and USB 20Gbps Type-C.
Power delivery is the quiet hero for AI. Inference spikes are less violent than gaming frame-time chaos, but fine-tuning and multi-agent workloads keep CPU packages warm for long stretches. Alloy chokes, durable capacitors, and those 80A stages give the board room to hold boost behavior without immediate thermal throttling of the VRM. Large VRM, M.2, and PCH heatsinks plus Fan Xpert 4 hybrid headers help you script a cooler that ramps for compile jobs then settles for overnight batch runs.
Storage is practical rather than extravagant: one onboard PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots, each covered. That is enough for an OS drive, a primary model library, and a scratch disk. If you routinely keep more than three NVMe devices internal, budget an enclosure or accept that the Strix B850-A’s fourth slot is the better AMD alternative. For most Intel AI desks, three fast drives plus a large SATA archive still covers the workflow.
Connectivity matches 2026 expectations. Wi-Fi 7 matters when your desk is far from the router yet you still pull multi-gigabyte checkpoints. 2.5Gb Ethernet remains the sane wired default for home labs that have not invested in 10Gb switching. USB 20Gbps Type-C helps when you shuttle models on external NVMe docks between a laptop and this tower.
TUF branding usually means fewer RGB theatrics and more reinforced slots, which suits AI machines that get opened often for GPU swaps. Reinforced PCIe and a no-nonsense ATX layout beat fragile showpiece boards when you are reseating a 400W-class card every few months. The Advanced AI PC-ready claim is credible here because the board does not skimp on the boring parts—power, cooling mass, and modern I/O—that actually keep AI sessions alive.
Skip this board if you are committed to AMD’s AM5 upgrade runway, need onboard 10GbE, or want a micro-ATX Intel footprint instead. Otherwise, for a Core Ultra Series 2 AI workstation that also games, the TUF B860-PLUS WiFi is the Intel pick we would actually recommend to friends.
Pair with a Core Ultra Series 2 CPU that matches your NPU-plus-GPU mix, 32GB or more of DDR5 for LLM context comfort, and a GPU with enough VRAM for your target models. Keep the primary PCIe 5.0 M.2 for your hottest model store and use Gen4 drives for secondary libraries.
If your case is mATX-only or you want Thunderbolt header flexibility and a Z890 feature set in a smaller board, look at the Prime Z890M-PLUS WiFi later in this list. Stay on the TUF B860-PLUS when you want full ATX cooling clearance and the highest buyer rating among Intel options here.
We may earn a commission at no additional cost to you.
The GIGABYTE B850 AI TOP is the pack’s networking specialist, and for AI teams that is often the missing piece. Local model training is only half the story; the other half is shuttling datasets, checkpoints, and Docker images between a NAS, a render node, and this desktop. Onboard 10GbE changes that from overnight jobs to lunch-break syncs when the rest of your network is ready. WiFi 7 remains available for convenience, but the wired port is why this board earns a top-pick badge despite a softer 3.8 rating.
Power design is aggressive on paper: 16+2+2 phases with 110A smart power stages. That is the kind of VRM marketing aimed at high-core Ryzen CPUs holding boost while a GPU saturates the PCIe slot. DDR5 support across four DIMMs with high MT/s targets helps memory-hungry token contexts and preprocessing pipelines. Thermals include VRM and M.2 guards—necessary when three drives and a dense GPU share a mid-tower case.
We are candid about the rating. A 3.8 average means some buyers hit BIOS quirks, QC variance, or expectations mismatches. For an AI workstation purchase, that means you should verify the exact BIOS version for your Ryzen SKU, keep Flash tools handy, and confirm return windows. The hardware brief is compelling; the crowd score says treat first boot like a proper workstation commissioning, not a casual plug-and-play gaming unbox.
USB-C behavior is interesting: listing notes cite USB-C 10G or 40G depending on Ryzen 8000 CPU pairing. That matters if you dock high-speed external storage or a small capture pipeline. Still, do not buy this board solely for USB4-class hopes—buy it for 10GbE and VRM headroom, then treat USB bonuses as situational.
Three M.2 slots are adequate for OS, models, and scratch. If your AI hobby is really a storage hobby, the Strix B850-A’s fourth slot may matter more than 10GbE. Conversely, if you already own a 10Gb switch and a multi-bay NAS full of training corpora, this board suddenly looks more rational than any WiFi-flex gaming Strix.
Buy the AI TOP when networking is the bottleneck you feel every week. Skip it if you only ever sync over consumer WiFi, hate the idea of a lower review score, or need a board with a longer public track record at a higher star average. Used carefully, it is still the clearest “AI lab LAN” choice in the pack.
Match the port with a 10Gb switch or direct DAC/peer link, use a NAS with a 10Gb NIC, and prefer wired SMB/NFS paths for dataset mounts. Without that ecosystem, 10GbE is just a badge—and the AORUS Elite WIFI7 becomes the saner B850 buy.
Update BIOS before installing a new Ryzen 9000 chip, stress memory with EXPO profiles, and validate PCIe link width to the GPU after the first boot. Keep packaging until a week of mixed AI and gaming workloads passes without instability.
Freelance ML engineers with a home 10Gb backbone, small studios syncing Unreal and diffusion assets, and AMD builders who outgrew 2.5GbE before they outgrew AM5.
We may earn a commission at no additional cost to you.
GIGABYTE B850 AORUS Elite WIFI7
The B850 AORUS Elite WIFI7 is the sensible middle of the AM5 AI market: strong enough VRM for Ryzen 9000, modern wireless, PCIe 5.0, and a buyer rating that matches the Strix without the ROG premium narrative. For many people building a first serious local-LLM tower, that balance is exactly right. You get DDR5 across four DIMMs, three M.2 slots, USB-C, and enough heatsinking that overnight batch jobs should not cook the power stages.
AI usefulness here is about boring reliability. EZ-Latch style conveniences matter when you swap GPUs after a new VRAM-heavy card launches. Thermal guards on VRM and M.2 keep Gen5 drives from thermal throttling while a diffusion backlog runs. 2.5GbE is enough if your NAS is still on multi-gig copper and you are not moving tens of gigabytes hourly.
Sensor Panel Link is a niche delight for AI tinkerers who mount a small IPS panel to watch GPU VRAM, CPU package temp, and fan RPM without alt-tabbing out of a training notebook. It is not mandatory, but it fits the “I leave jobs running while I cook dinner” lifestyle better than RGB-only gimmicks.
Compared with the B650 AORUS Elite AX later in this list, the B850 refresh brings a newer chipset story and WiFi 7. Compared with the AI TOP, you trade 10GbE and a thicker power stage claim for a much healthier 4.6-star crowd signal. That trade is correct for most solo builders.
Firmware discipline still applies. AM5 boards occasionally need a BIOS update for the newest Ryzen stepping. Use Q-Flash style tools if you buy CPU and board separately, and validate EXPO memory before you assume instability is a PyTorch bug.
Buy this when you want a no-drama B850 AI gaming hybrid. Skip it if four M.2 slots or 10GbE are non-negotiable. As a daily driver motherboard for AMD AI PCs, it remains one of the easiest recommendations in the pack.
Local LLMs in the 7B–70B quantized range, image generation, voice transcription, and light fine-tuning all fit this board when paired with adequate GPU VRAM and 64GB of DDR5 for comfort.
Prioritize case airflow over glass aesthetics, mount the Gen5 SSD with its thermal guard seated firmly, and leave cable clearance above the PCIe slot for thick triple-slot AI GPUs.
We may earn a commission at no additional cost to you.

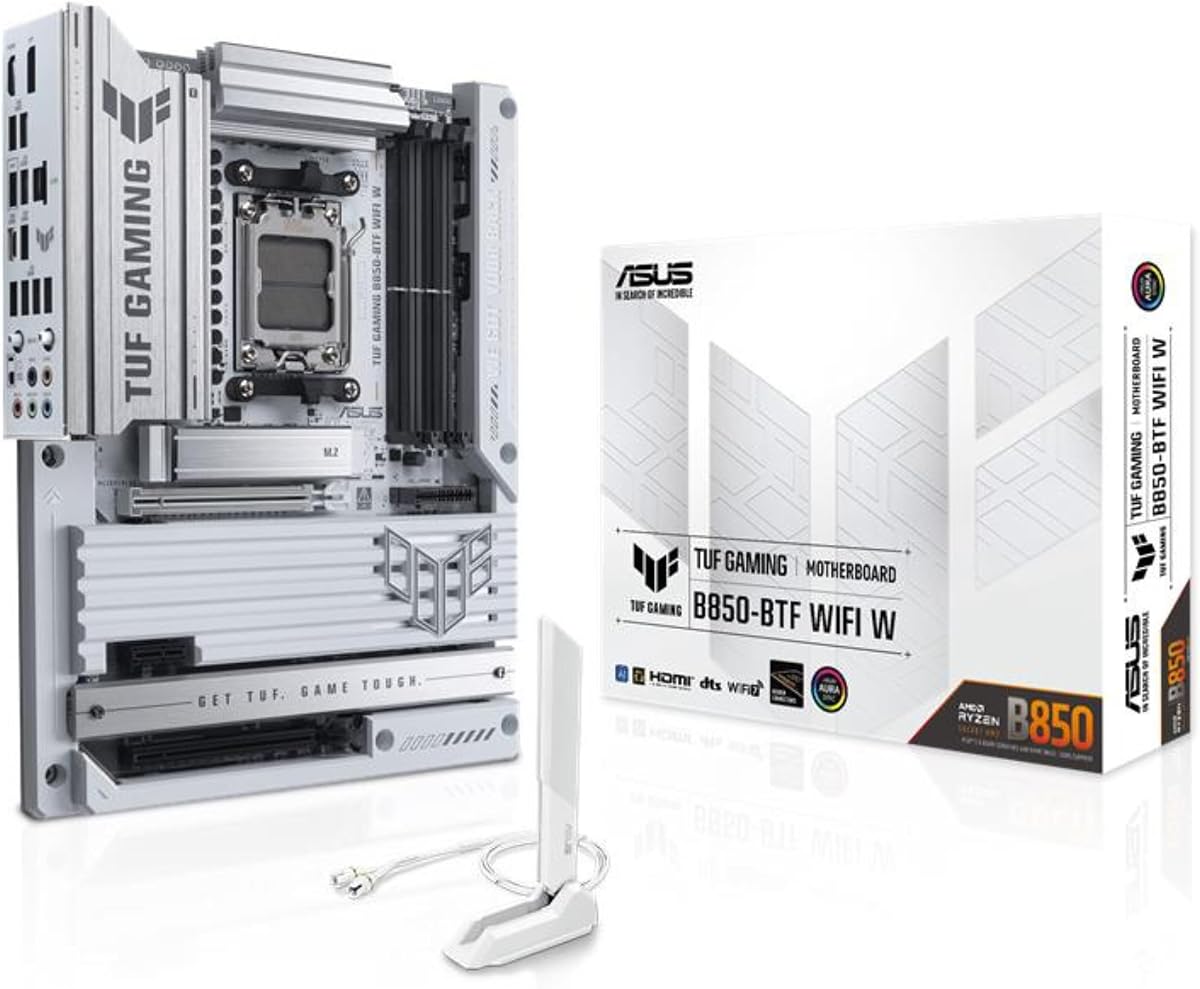

ASUS TUF Gaming B850-BTF WiFi W
AI GPUs run hot, and cable spaghetti in front of the card makes thermals worse. The TUF Gaming B850-BTF WiFi W attacks that problem with a hidden-connector design that relocates many board cables to the rear, giving DIY enthusiasts an unusually clean interior. For builders chasing lower GPU hotspot temperatures during long Stable Diffusion or LLM sessions, that airflow win is not cosmetic—it is performance stability.
Electrically, ASUS equips a 14+2+1 80A DrMOS solution, 8-layer PCB, and 8+8 pin ProCool connectors. That is credible for Ryzen 9000 AI desktops that also game. PCIe 5.0 readiness and three M.2 slots cover mainstream storage plans. The standout extra is compatibility with a PCIe high-power connector path on supported graphics cards, with marketing claiming up to 600 watts delivered through the motherboard ecosystem when everything matches.
That high-power promise is ecosystem-dependent. You need the right case, the right GPU support, and careful reading of ASUS guidance. Treat it as a future-facing feature for neat high-wattage builds rather than a universal free lunch on every legacy card. If your AI GPU still uses a conventional 12VHPWR or multi-PCIe power bundle from the PSU, the BTF board still helps by clearing front-side clutter.
Networking and ports are modern: Wi-Fi 7, 2.5Gb LAN, DisplayPort, HDMI, and USB 20Gbps Type-C. That is plenty for a creator desk. The Advanced AI PC label fits because sustained thermals and power integrity matter more for AI than another RGB header.
The catch is commitment. BTF shines when you buy into rear-connect cases. Dropping this board into a classic cable-through-cutout chassis wastes much of its point. If you love showpiece interiors and hot GPUs, commit fully. If you want maximum case compatibility, the regular TUF or AORUS B850 boards are simpler.
We recommend the B850-BTF WiFi W to AMD builders designing a new AI showcase or silent-ish airflow tower from scratch. Skip it for office refurbs using random spare cases. Done right, it is one of the most thoughtful thermal layouts in the pack.
Confirm BTF or rear-connect case support, check GPU high-power connector compatibility if you plan to use that path, and dry-fit the card before final cable dressing so PCIe latch access remains sane.
With front-side cables gone, invest the visual calm into better intake filters and a GPU support bracket. Hot memory modules on AI cards still need clear exhaust; BTF helps but does not replace case fans.
We may earn a commission at no additional cost to you.
Not every AI PC needs a brand-new socket. If you already own a strong 13th or 14th gen Core CPU and a capable GPU, the B760M MAX Gaming WiFi is a high-confidence way to rebuild around that silicon for local AI. Its 4.8 rating is the best in this pack, which matters when you want fewer BIOS lottery stories and more time training models.
ASUS still stamps Advanced AI PC-ready on the box, and the practical pieces are there: PCIe 5.0 x16 for modern GPUs, DDR5, three M.2 slots, WiFi 6, DisplayPort, HDMI, SATA, and useful USB. OptiMem II signal work helps memory overclocking and stability—quiet insurance when your inference stack loves RAM. Comprehensive cooling with VRM and PCH heatsinks plus Fan Xpert 2+ covers midrange CPUs used for preprocessing while the GPU does the heavy math.
mATX is a feature for AI desks that cannot host a full tower shrine. Many creators slide a compact case under a monitor arm and care more about GPU clearance than ATX RGB real estate. Just measure your card length; AI GPUs are often longer than gaming 1080p specials.
Wireless is the compromise. WiFi 6 is fine for updates and light sync, but if you constantly pull large checkpoints over WiFi, a WiFi 7 AM5 or LGA 1851 board will feel better. Prefer Ethernet whenever you can; this board’s job is to be a stable host, not a wireless speed demon.
Software extras include Two-Way AI Noise Cancelation and Aura Sync. Noise cancelation is oddly relevant for AI builders who record demos or join standups while fans spin up. Aura Sync is optional flavor.
Buy this to revitalize an existing LGA 1700 gaming PC into an AI workstation on a controlled budget. Skip it if you are buying CPU and board together today—then AM5 or LGA 1851 is the longer runway. As a starter AI host for parts you already trust, it is excellent.
LGA 1700 tops out with current-gen-compatible Core chips already on the market. Plan GPU and storage upgrades more than CPU hops. If you want years of new CPUs, choose AM5 instead.
Use a case with strong GPU intake, keep M.2 heatsinks installed, and prefer a low-profile CPU cooler if your mATX case is shallow. Cable-manage SATA archives behind the tray so they do not block exhaust.
We may earn a commission at no additional cost to you.
Before B850 boards flooded listings, the B650 AORUS Elite AX was already a favorite midrange AM5 workhorse—and it remains a smart AI host if you find a good deal or already own one. GIGABYTE kept Ryzen 9000/8000/7000 support in the brief, so this is not a dead-end chipset orphan. DDR5 with EXPO and XMP support, a commanding 14+2+1 70A digital VRM, and an 8-layer 2X copper PCB give it the electrical backbone AI CPUs appreciate.
Cooling hardware is a highlight: 6mm heatpipe, fully covered MOSFET heatsinks, M.2 thermal guard, and PCIe armor. Those pieces matter when a Gen5 SSD sits under a GPU that dumps heat downward. AI workloads that thrash disk caches will thank you for not thermal-throttling the model drive at minute forty.
Connectivity is last-gen excellent rather than 2026 flashy: WiFi 6E, 2.5GbE, PCIe 5.0 pathways, and USB-C. You can absolutely run local LLMs and diffusion stacks here. You just will not get WiFi 7 or the newest B850 convenience silicon. For wired desks, that gap is small.
Q-Flash and EZ-Latch continue to make ownership less stressful. First-boot BIOS updates for new Ryzen chips are a rite of passage on AM5; Q-Flash is the tool you want when the CPU is too new for the box BIOS. RGB Fusion is optional seasoning.
Where does it sit versus the B850 AORUS Elite WIFI7? Choose B850 for WiFi 7 and newer platform polish. Choose this B650 when value, proven thermals, and existing stock matter more. For AI, both can host the same GPU; the motherboard difference shows up in wireless, warranty era, and small I/O niceties.
Buy the B650 AORUS Elite AX as a proven midrange AM5 AI board with serious VRM cooling. Skip it if you are paying nearly the same for a B850 WiFi 7 model—then take the newer chipset.
Yes, if the CPU, GPU, and RAM are right. Motherboard chipset generation is secondary to VRAM and system memory for most local AI. This board remains relevant precisely because AM5 CPUs keep landing on it.
Use the PCIe 5.0 M.2 for active model packs, a secondary NVMe for datasets, and SATA or external USB-C for cold archives. Keep the thermal guard snug on the Gen5 drive.
We may earn a commission at no additional cost to you.
Compact does not have to mean compromised for Intel AI PCs. The Prime Z890M-PLUS WiFi targets Core Ultra Series 2 in an mATX footprint with a surprisingly complete AI-oriented I/O list: 10+1+2+1 80A DrMOS stages, 6-layer PCB, ProCool connectors, large VRM and PCH heatsinks, hybrid fan headers, Fan Xpert 4 with AI Cooling II, Wi-Fi 7, 2.5Gb LAN, and three M.2 slots including one PCIe 5.0 path.
AI Cooling II and AI Networking II are the software twins of the Advanced AI PC pitch. Cooling II learns fan behavior so overnight jobs do not sound like a hair dryer if thermals are fine; Networking II tries to keep latency-sensitive traffic sane while downloads chew bandwidth. Neither replaces good case airflow or a wired backbone, but both reduce babysitting.
Connectivity depth is a Prime strength. Rear USB 20Gbps Type-C with DP Alt mode, front USB 5Gbps Type-C, and Thunderbolt (USB4) header support mean you can plan a dock-centric AI desk where an external GPU enclosure is unlikely but fast Thunderbolt storage and displays are plausible. DIY helpers—Q-Antenna, Q-Dashboard, Q-LED Core, BIOS FlashBack, pre-mounted I/O shield—lower first-build friction.
Thermals on mATX boards need honesty. Large heatsinks help, yet smaller PCBs put VRMs closer to GPU heat soak. Choose a case with a ventilated GPU chamber and avoid stuffing thick radiators with zero intake. For AI, a cool GPU beats a pretty sandwich layout.
The 4.1 rating suggests more mixed experiences than the TUF B860-PLUS. Read recent feedback about BIOS and wireless, and budget time for firmware updates. Feature-wise this board is richer than its star count implies, especially if Thunderbolt header plans matter.
Pick the Z890M-PLUS when you need LGA 1851 AI features in mATX. Pick the TUF B860-PLUS when you want ATX thermal margin and the stronger crowd score. Both can host serious Core Ultra AI work; the case decides.
Measure card length and slot spacing. Many AI GPUs need two or three slots and heavy power cables. mATX boards only help if the case was designed for modern triple-slot cards.
Editors and researchers who already live on Thunderbolt docks, fast external NVMe, or shared display adapters will appreciate header support more than pure LAN-focused ML engineers.
We may earn a commission at no additional cost to you.
The Prime B840-PLUS WiFi exists for builders who want AM5 and AI-ready messaging without paying for every B850 luxury. It supports Ryzen 9000, 8000, and 7000 series CPUs, runs DDR5, offers three M.2 slots, Wi-Fi 6E, 2.5Gb Ethernet, DisplayPort, HDMI, and USB 10Gbps Type-A and Type-C. That is a complete starter kit for a local AI PC that will spend most of its life talking to a midrange GPU.
Be clear about PCIe 4.0. For many AI GPUs and NVMe drives, PCIe 4.0 is still not the real bottleneck—VRAM capacity and model quantization choices dominate. You give up headline Gen5 SSD speeds and some future-proofing, not the ability to run Ollama or ComfyUI. If your roadmap includes the fastest Gen5 drives and top-tier lane flexibility, step up to B850.
Power and cooling are Prime-class: 6-layer PCB thinking, alloy chokes, durable capacitors, VRM and M.2 heatsinks, PCH heatsink, and Fan Xpert 2+. That is adequate for mainstream Ryzen chips used as AI hosts. It is not the board we want under the hottest multi-CCD CPUs stressed all day beside a blazing GPU in a tiny case. Match CPU ambition to board class.
BIOS FlashBack remains one of the best first-build safety nets on AM5. Aura Sync RGB is available if you care; many AI towers will leave it disabled. The Advanced AI Ready label here mostly means modern I/O and platform support rather than specialized AI silicon on the board itself—which is true of almost every board in this roundup.
As a teaching machine or a home lab entry node, the B840-PLUS makes sense. Install Ubuntu or Windows, drop in a used high-VRAM GPU, and learn workflows before funding a Strix-level platform. The 4.0 rating says expectations should stay measured; check recent reviews for BIOS maturity on your exact Ryzen SKU.
Buy it to enter AM5 AI on a budget with a full ATX tray. Skip it if PCIe 5.0 storage or thicker VRMs are already on your must-have list—then the AORUS Elite WIFI7 or Strix B850-A are the cleaner spends.
Ryzen 5 or 7 class CPU, 32–64GB DDR5, a GPU with as much VRAM as you can afford, and two NVMe drives so models do not live on the OS disk. Ethernet to a NAS beats WiFi for datasets.
Jump when you need Gen5 SSD peaks, WiFi 7, or higher phase-count comfort for a flagship Ryzen. The B840 is a doorway, not the final form for heavy fine-tuning hosts.
We may earn a commission at no additional cost to you.
Most AI roundups ignore commercial board programs. The Prime B840M-A WiFi-CSM exists because offices and classrooms deploying local AI assistants care about stable BOM revisions as much as peak M.2 counts. ASUS Corporate Stable Model (CSM) is aimed at that reliability story: fewer surprise board spins, steadier lifecycle planning, and a feature set that is Advanced AI Ready without enthusiast chaos.
Hardware fundamentals still look familiar to DIY readers: AM5 for Ryzen 9000/8000/7000, DDR5, PCIe 4.0 x16, three PCIe 4.0 M.2 slots, Wi-Fi 6E, 2.5Gb Ethernet, DisplayPort, HDMI, USB Type-C front and rear support, VRM/M.2/PCH heatsinks, and Fan Xpert 2+. It will run local models beside a discrete GPU just fine for many business copilots, transcription PCs, and internal chatbots.
Where CSM helps is operations. IT teams can standardize an mATX AM5 image, lean on BIOS FlashBack for field recovery, and use ASUS DriverHub plus Armoury Crate ecosystems in managed ways. GlideX and MyHotkey are productivity sideshows that sometimes matter on shared desks. Aura Sync remains available but is optional in beige-adjacent offices.
Enthusiast caveats apply. The 3.9 rating is middling, PCIe 4.0 is not the bleeding edge, and the VRM brief is entry AM5 rather than AI TOP territory. Do not buy CSM because you want the fastest gaming LAN party board—buy it because you want fewer platform surprises across a small fleet of AI-enabled desktops.
DIY friendliness is ironically high: pre-mounted I/O shield, Q-Dashboard, Q-LED Core, and Q-Antenna reduce helpdesk friction when non-experts assist with builds. That matters in schools and studios where the “AI PC” is assembled by whoever is free on Friday afternoon.
Choose the B840M-A WiFi-CSM for commercial-stable AM5 AI desktops in mATX chassis. Choose Strix, TUF, or AORUS B850 boards for personal high-performance labs. Same socket family, different ownership philosophy.
Document BIOS versions, keep a USB FlashBack stick in the parts bin, and standardize on one DDR5 kit validated with EXPO. Image the OS with your inference stack after hardware burn-in, not before.
If you are a single power user chasing WiFi 7, 10GbE, or Gen5 storage bragging rights, CSM constraints help you less than a B850 AI TOP or Strix. Leave CSM to multi-machine stability needs.
Private document Q&A boxes, meeting transcription towers, and on-prem image tools that must not send data to public clouds are the sweet spot for this board class.
We may earn a commission at no additional cost to you.
Pick the CPU ecosystem before the board badge. AM5 gives Ryzen 7000 through 9000 a long runway and strong multi-core value for preprocessing, tokenization, and CPU offload tasks. LGA 1851 Core Ultra Series 2 boards emphasize Advanced AI PC features and NPU-assisted workflows alongside a discrete GPU. LGA 1700 remains valid only when you already own a strong 12th–14th gen chip and want to rebuild around it. Buying the “AI” motherboard first and the CPU second is how people strand budgets.
AI sessions are marathons. A board with robust power stages, ProCool-style EPS connectors, and large VRM heatsinks holds CPU boost while your GPU saturates for hours. Phase count marketing is imperfect, but extremes still mean something: 16+2+2 110A designs and 14+2 80A stacks generally inspire more confidence than bare entry VRMs when you pair high-core CPUs with hot GPUs in compact cases. Always plan case airflow; motherboard heatsinks cannot invent intake.
Your GPU wants a clean x16 electrical path. Your models want fast NVMe. Three M.2 slots are the practical minimum for OS, active models, and scratch; four is a luxury that reduces USB clutter. PCIe 5.0 graphics and storage are nice headroom, but VRAM capacity will bottleneck you before Gen5 SSD peaks in many LLM scenarios. Read lane-sharing charts before filling every slot plus a capture card.
If you sync multi-gigabyte corpora daily, treat Ethernet as part of the AI stack. 2.5GbE is the modern baseline; 10GbE on boards like the GIGABYTE B850 AI TOP becomes transformative with a matching switch or NAS. WiFi 7 helps messy apartments; it is still a poor substitute for wired dataset mounts. Plan the network before blaming PyTorch for “slow epochs” that are actually I/O waits.
Local LLMs love system RAM for context, KV caches, and CPU fallback layers. 32GB is a starting line; 64GB or more is comfort for multitasking UIs plus models. Enable EXPO or XMP only after a memory stress test—unstable RAM looks like flaky AI frameworks. Four-DIMM populations can be pickier at high speeds; two quality sticks are often calmer for first boots.
ATX remains easiest for thick AI GPUs and tidy cable routes. mATX works when desk space is scarce, provided the case supports long cards. BTF hidden-connector designs improve GPU airflow if—and only if—you buy a compatible case. Commercial CSM boards trade excitement for BOM stability when you deploy more than one machine.
No. Local LLMs care most about GPU VRAM, system RAM, and a stable CPU host. An “AI-ready” motherboard helps when it provides strong power delivery, enough M.2 slots, and fast networking—not because it contains magic AI silicon. Boards in this guide earn attention by feeding GPUs and storage well during long sessions.
Both work. AM5 wins if you want a longer CPU upgrade path across Ryzen generations and strong multi-core value. LGA 1851 Core Ultra Series 2 wins if you specifically want Intel’s Advanced AI PC platform features and NPU-assisted workflows alongside a discrete GPU. Choose based on the CPU deal and software you already use, then pick the board.
Helpful, rarely decisive today. Most inference and diffusion workloads do not saturate PCIe 4.0 x16. PCIe 5.0 is sensible future-proofing and can matter more for certain high-end SSDs on the same platform. Prioritize GPU VRAM and cooling before paying a large premium solely for Gen5 graphics lanes.
Because onboard 10GbE plus a thick 16+2+2 power design is rare in this pack and uniquely aligned with AI dataset movement. The lower rating is a real caution—update BIOS carefully and keep returns open—but networking specialists sometimes outrank safer generalists for lab builds that already own 10Gb infrastructure.
Start at 32GB for lighter quantized models and learning workflows. Budget 64GB when you multitask, run larger contexts, or keep browsers and IDEs open beside inference. Some heavy CPU offload scenarios benefit from even more. Ensure your board’s four DIMM slots and EXPO/XMP profiles behave with the kit you choose.
Not inherently. mATX boards can host full-length GPUs if the case allows. The risks are tighter VRM spacing near the GPU, fewer expansion slots, and harder cable management. Measure twice. The Prime Z890M-PLUS and B760M MAX prove compact AI builds are viable when airflow is honest.
Less for training, more for general desk life. Ethernet should carry dataset mounts whenever possible. WiFi 7 still improves laptop-like convenience, cloud sync when you roam rooms, and households where running cable is ugly. Treat wireless as backup; treat 2.5GbE or 10GbE as the AI plumbing.
Look for reinforced PCIe slots, EZ-Latch or Q-Release style conveniences, clear 24-pin and EPS routing, and case-friendly ATX layouts. BTF hidden-connector designs can also help by keeping power clutter off the front of the card. Serviceability matters because AI hardware turns over quickly as VRAM needs grow.
It can host the GPU that does the serious work, which is the main point. Entry B840 VRMs and PCIe 4.0 storage are fine for many fine-tuning experiments on midrange CPUs. If you plan a flagship multi-CCD Ryzen at high sustained power in a hot case, a B850 board with stronger stages is the more comfortable foundation.
Yes when lifecycle stability across multiple identical PCs matters more than enthusiast features. CSM boards like the Prime B840M-A WiFi-CSM aim for commercial predictability. A single researcher chasing peak networking or Gen5 storage should buy an enthusiast B850/B860 board instead and accept faster model churn.
The best motherboard for AI in 2026 is the one that keeps your GPU fed, your NVMe model library cool, and your dataset pipe wide enough that training time is spent on compute—not waiting on copies. In this pack, the ASUS ROG Strix B850-A Gaming WiFi is the most complete overall AM5 answer with four M.2 slots and thoughtful AI-oriented tooling, while the ASUS TUF Gaming B860-PLUS WiFi is the Intel Core Ultra ATX pick with the strongest buyer rating. The GIGABYTE B850 AI TOP earns its specialty badge whenever 10GbE is part of your real workflow.
From there, match personality to platform: AORUS Elite WIFI7 for balanced AM5 value, TUF B850-BTF for clean high-airflow showcases, B760M MAX for revitalizing LGA 1700 parts, B650 AORUS Elite AX for proven midrange muscle, Prime Z890M-PLUS for compact Intel ambition, and the B840 Prime options for entry or commercial-stable desks. Ignore dollar-price snapshots in articles; verify live listings, confirm BIOS support for your exact CPU, and spend the savings on VRAM.
If you remember only one rule, remember this: AI PCs outgrow storage and GPUs faster than they outgrow a well-chosen socket. Buy the board that supports the CPU path you want for years, with networking and M.2 counts that match how you actually move models—then build the rest of the machine around that honest foundation.
