Best Air Coolers for AM5 in 2026: Ryzen-Ready Picks

Detailed review

AGHP’s pitch is orientation flexibility—the pipes are meant to shrug off reverse-gravity effects whether the tower stands upright in a classic ATX case or lives in a less common horizontal layout. For most AM5 gamers that simply translates to consistent heat transport from the IHS into the aluminum fin stacks.

Fan specs are modest on paper—about 1550 RPM and 66 CFM—which is a feature on a quiet evening gaming PC. You get dual-tower surface area without forcing 2000+ RPM screamers. PWM control lets the board park the fans lower during desktop work.

On AM5 specifically, contact quality and mounting pressure matter as much as pipe count. Follow Thermalright’s plate orientation for AM5, tighten in a cross pattern, and use a pea of decent paste if you are not reusing a pre-applied pad. The cooler’s copper contact surface expects flat, even torque.

Choose PA120 SE when you want dual-tower headroom without paying Noctua money or dealing with a screen cable. Step to Phantom Spirit 120SE if you want a seventh heat pipe, or to the ARGB SE if lighting is non-negotiable.

RAM clearance on AM5 boards

Install the front fan after the DIMMs if your kit uses tall spreaders. Many AM5 RGB sticks clear the PA120 SE with the fan raised slightly on the clips—test before you celebrate.

Who should buy it

1080p/1440p gamers on non-X3D or mid-X3D chips, creators on 8-core Ryzen parts, and anyone rebuilding from AM4 who wants familiar dual-tower performance on the new socket.

Detailed review

Four heat pipes and a copper base target AMD R7 and Intel i7 class chips per Cooler Master’s own positioning. On AM5 that maps cleanly to 7600, 7700, and many 9600X/9700X systems that are not chasing all-core overclock records.

The fan’s 690–2500 RPM window is unusually wide. Low RPM keeps living-room PCs calm; the top end gives you a temporary turbo when rendering spikes. PWM from the AM5 board’s CPU_FAN header is the intended control path.

At 152 mm tall, the 212 Black sneaks into cases that reject a 168 mm NH-D15. That is the Hyper 212’s enduring niche on AM5: good enough thermals when height, not absolute Cinebench scores, is the constraint.

Skip it for heavily power-unlimited Ryzen 9 parts in hot rooms—those builds deserve Phantom Spirit, PA120 SE, or Noctua. Keep it for mid-range AM5 upgrades and compact mesh towers.

Paste and mount tips

Use the included paste sparingly on Ryzen’s large IHS—aim for even coverage without squeezing conductive mess onto socket pads.

Second fan option

The single-tower frame often accepts a second 120 mm push-pull fan if your RAM height allows. That DIY step closes some of the gap to stock dual-tower kits.

Detailed review

The TL-C12C fan matches the PA120 SE’s 1550 RPM / 66 CFM recipe, so you are not stuck with a weak spinner—just less radiator area for that air to scrub. For 65 W–105 W class Ryzen chips with sensible PPT limits, that is often enough.

Socket support spans AM4/AM5 and a long Intel list through LGA 1851, which helps multi-platform households. The refined SE kit focuses on straightforward metal hardware rather than gimmicks.

Compared with the Hyper 212 Black, you get AGHP pipes and a skinnier profile; compared with Phantom Spirit, you surrender two pipes and an entire second tower. Pick based on CPU power target, not brand loyalty.

AM5 builders running EXPO memory with giant light bars should seriously consider this slim tower before forcing a dual-tower fan into the first DIMM slot.

Ideal Ryzen partners

Ryzen 5 7600/9600X and similar 6-core parts in mesh cases. Enable a sane temperature limit in PBO if you want lower fan noise.

Case airflow note

Single towers lean on front intake. A sealed glass fishbowl without intake fans will make the AX120R SE look weaker than it is.

Detailed review

Cooling hardware stays serious: six 6 mm AGHP Gen 5.0 pipes and twin 120 mm fans spinning up to about 2150 RPM with roughly 69 CFM. That is more aggressive than the 1550 RPM SE fans, matching hotter Ryzen loads when you raise PPT limits.

Height grows to 164 mm with the screen stack. Measure your case’s CPU cooler clearance—many “157 mm” budget towers will not love this. Matte black coating helps the dual towers disappear under ARGB RAM while the IPS panel becomes the hero.

Plan USB or proprietary screen cabling during the AM5 board layout so the cable does not block the first M.2 shield. Magnetic attachment helps service, but only if you leave slack.

Buy Vision MAX when the cooler is part of the show and you still want Peerless-class fin area. Buy plain PA120 SE when you want the same family thermals without a display tether.

Screen versus TRYX TURRIS

Vision MAX uses a 480×854 panel on a Thermalright dual tower. TRYX TURRIS 620 later in the pack jumps to a 1280×720 5-inch panel with GIPHY integration—pick based on software ecosystem taste.

Noise expectations

2150 RPM fans will be audible at 100% PWM. Cap CPU fan curves in your AM5 board’s UEFI for nightly use.

Detailed review

Fan speed stays near 1500 RPM, prioritizing bearing quality and acoustics over Vision MAX’s 2150 RPM sprints. S-FDB bearings are Thermalright’s pitch for longevity—useful when the cooler is meant to outlast a single Ryzen generation on AM5’s long socket promise.

Compatibility lists AM5 alongside AM4 and Intel’s current sockets, so the cooler can move if you keep boards around the house. Mounting plates are metal; take your time aligning the AM5 ILM area so pressure stays even.

Aesthetically it is still a no-frills silver/black tower. Pair it with a mesh case and chromax fans later if you want silence cosplay; out of the box it just works.

If your shortlist is PA120 SE versus Phantom Spirit, take Phantom Spirit for hotter chips and PA120 SE when you found a simpler bundle and run a modest Ryzen 5/7. Both beat most stock AMD coolers by a wide margin—note many AM5 boxes include no cooler at all.

AM5 chips that love seven pipes

Ryzen 9 class parts, long Blender frames, and PBO-enabled gaming PCs in warm climates. X3D chips also appreciate the headroom even if they draw less than non-X3D siblings under some loads.

Installation patience

Remove the stock AM5 cooler brackets if present, install Thermalright’s bars as diagrammed, and verify the fan cables reach CPU_FAN / CPU_OPT without stretching across the 24-pin.

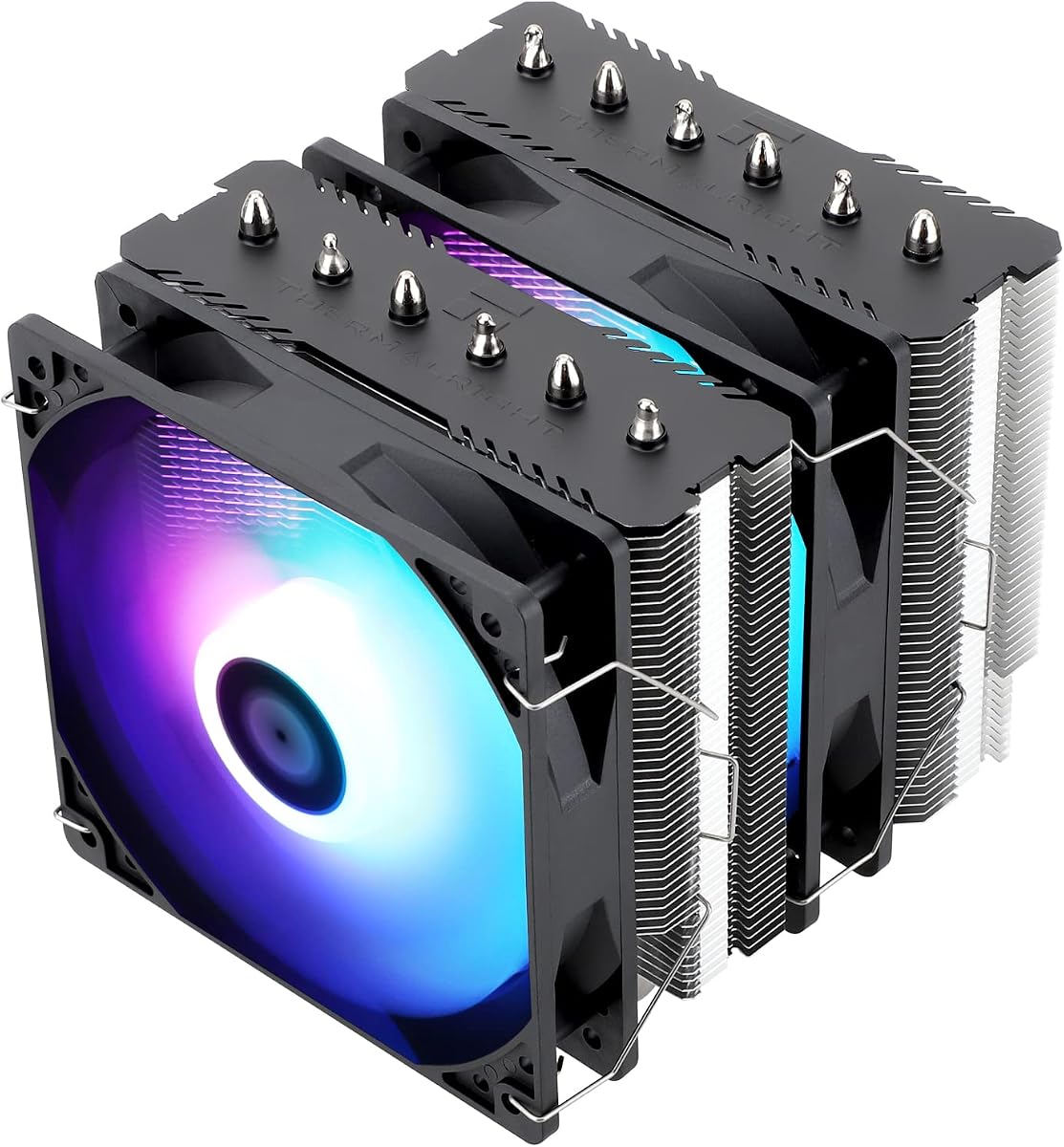

Detailed review

Mechanically you are still in 6-pipe, ~155 mm dual-tower territory with AGHP sintering and AM4/AM5 hardware in the box. Thermalright’s TDP guidance in the listing frames it for roughly 120–245 class loads— squarely where most gaming Ryzen chips live when not fully unleashed.

Treat ARGB as a cable-management task on AM5 boards that already host EXPO RGB sticks and GPU lighting. Daisy-chain or hub the cooler fans early so the rear chamber stays serviceable.

Performance expectations should match the non-ARGB SE more than the Vision MAX. You are buying light diffusion, not an automatic seven-pipe upgrade—that is still Phantom Spirit’s job.

Pick this SKU for themed white/black RGB AM5 builds. Pick chromax Noctua if you want black without rainbows. Pick Vision MAX if you want a screen more than fan LEDs.

Sync tips

Match the cooler to a single +5V ARGB header ecosystem. Mixing 12V RGB and 5V ARGB adapters is how LEDs misbehave.

Versus Assassin X Digital

PA120 SE ARGB is dual-tower light. Assassin X 120R Digital is a single-tower with a numeric top display—different show, different thermals.

Detailed review

Seven heat pipes in a single-tower layout plus a 120 mm FDB PWM fan (500–2200 RPM, 0 RPM under very low PWM) aim at quiet AM5 gaming. Full RAM freedom is a headline feature: no dual-tower fan hanging over your brightest DIMMs.

The digital display surfaces temperature, load, and frequency-style metrics on the cooler itself. It is less cinematic than TRYX’s 720p panel, but it keeps tuning feedback in your peripheral vision.

Because the cooler cannot follow you to an Intel rebuild, buy it only if AM5 is home for the long socket lifespan AMD promised. Upside: the mount can be more purpose-built than universal kits that compromise everywhere.

Given the 4.2 rating versus 4.7–4.8 peers, inspect mounting instructions carefully and stick to the five-year warranty path the listing advertises if anything feels off. Enthusiasts who want proven dual-tower charts should still prefer Phantom Spirit or Noctua.

Anti-bend install reminder

The listing stresses installing the support when the motherboard is prepared for it—follow the diagram rather than improvising after the board is already in the case.

When AM5-only makes sense

You own multiple AM5 boards over years and never want Intel brackets rattling in the box. Everyone else should buy universal coolers.

Detailed review

SecuFirm2 mounting covers AM5 and AM4 with offset mounting guidance for AMD—useful for aligning the cooler over Ryzen chiplet hotspots. Intel LGA 1851/1700/1200/115x hardware stays in the box for households that bounce platforms.

At 168 mm, measure twice. Countless mid-towers advertise 160–165 mm cooler clearance and will not close their side panels on a D15. RAM clearance also needs a plan; Noctua’s fan offsets and possible single-fan front configuration exist specifically for tall DIMMs.

The listing explicitly calls out modern Ryzen and Core Ultra examples. On AM5, think 9900X/9950X class workloads, quiet editing PCs, and anyone who tried a cheap dual tower and hated bearing whine.

You pay for bearing quality, mount polish, and support longevity rather than screens or ARGB. If that trade feels right, the D15 chromax is still the AM5 air cooler that ends upgrade itch.

LNA strategy

Start with Low-Noise Adaptors fitted. Remove them only if sustained all-core AM5 loads climb higher than you like with your case’s airflow.

Versus Phantom Spirit

Phantom Spirit wins value and often raw °C per dollar. NH-D15 wins acoustics, mount experience, and long warranty peace of mind.

Detailed review

Think of it as the AX120R SE’s showier cousin with a faster 2000 RPM fan. Cooling capability stays in mainstream Ryzen 5/7 territory; the digital cover is the differentiator versus buying a plain slim tower.

Wide socket support includes AM5 and Intel LGA 1851, so the cooler is not a dead end if you experiment across platforms. Height at 151 mm is intentionally case-friendly compared with 164–168 mm flagships.

ARGB plus a screen means two personalization systems—set both or neither so the build does not look half-configured. Route the display cable with the 8-pin CPU power, not across the GPU mouth.

Buy this when you want telemetry flair without Vision MAX height or TRYX multimedia ambition. Buy Phantom Spirit when °C matter more than digits on a top cap.

Software expectation

TRCC is how you tailor the digital cover. If you refuse vendor utilities, the screen may stay on basic defaults—still usable, less playful.

Noise tuning

Cap the 2000 RPM fan in UEFI. The ‘quiet fan’ label assumes you are not pinning PWM at 100% all afternoon.

Detailed review

Under the spectacle sits a compact dual-tower with six copper heat pipes and reflow-soldered fins, rated in the listing around 280W TDP. That framing puts TURRIS in contention for high-power Ryzen builds that still refuse AIO maintenance, provided case airflow cooperates.

Rail-mounted fans hint at serviceability and alignment flexibility versus fans screwed only to fin faces. Use that during RAM clearance experiments on EXPO kits.

Compared with Thermalright Vision MAX, TRYX offers sharper multimedia and GIPHY toys; Thermalright offers a more familiar Peerless-style accessory ecosystem. Ratings in this pack favor TRYX, but ecosystem comfort is personal.

Measure clearance, plan USB power for the display, and decide whether you truly want motion graphics on your CPU before buying. When the answer is yes, TURRIS 620 is the pack’s centerpiece air cooler.

KANALI ecosystem note

Budget time to learn the software. The cooler’s value proposition collapses if the screen stays on a stock logo forever.

AM5 performance mindset

Even a 280W-class air cooler needs intake fans. Pair TURRIS with a mesh case so the dual tower is not reheating its own exhaust.

Who should skip it

Minimalists, headless workstations, and anyone who finds animated cooler GIFs distracting during competitive play.
